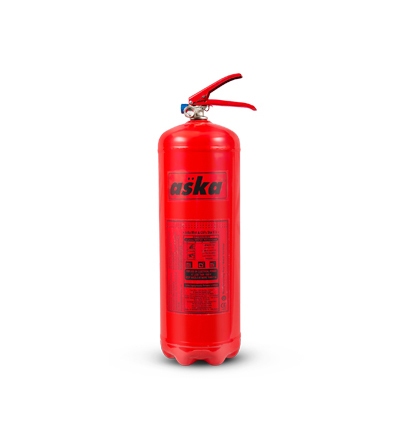

Stored Pressure Mist Extinguisher

Introducing Aska Stored Pressure Water Mist Extinguisher: Powerful, Eco-friendly, and Versatile for Multiple Fire Classes.

lamps

Vessel Material

Mild Steel

light-coverage

Lancing Distance

4m

fuel-indicator

Stored Pressure

15 Bar

speed-stability

Propellant Agent

Compressed Air

Description

Aska Stored Pressure Water Mist Extinguisher’s is having stable pressure suitable for extinguishing class of fire A, 8A, 89B, 25F, E1000V. It has 4 variants in various capacities and also option of utilitising inbuilt foam increasing its effectivity multifold.

Features
  • Ecofriendly and without collateral damage.
  • Extinguishes Class A, B, F and fires emanating due to electricity shot circuits and consequent heating
  • Versatile & Powerful
  • Operating Pressure of 15 Bar
  • Discharge Control available
  • Discharge Duration 15 Sec minimum
  • Availabile in 4L, 6L, 9L capacities

Extinguisher Type Aska Mist Star 4 Aska Mist Star 6 Aska Mist Star 9 Aska Mist & CAFs Star 9A
Vessel Capacity (Volume) 4L 6L 9L 9L
Extinguisher Agent Water Water Water Water + Foam
Suitable for class of fire A, E1000V A, E1000V A, E1000V 8A, 89B, 25F, E1000V
Approx weight in filled condition 6.25Kgs 8 Kgs 11 Kgs 11 kgs
Height 385mm 492mm 590mm 590mm
Overall width 200mm 198mm 205mm 205mm
Diameter 160mm 160mm 168mm 168mm
Propellant Agent Compressed Air Compressed Air Compressed Air Compressed Air
Usage Temperature 5°C to +60°C 5°C to +60°C 5°C to +60°C 5°C to +60°C
Stored Pressure 15 Bar 15 Bar 15 Bar 15 Bar
Vessel Material Mild Steel Mild Steel Mild Steel Mild Steel
Functioning Time 27 seconds 35 seconds 55 seconds 64 seconds
Lancing Distance (Maximum achieved) 4Mtr+ 4Mtr+ 4Mtr+ 4Mtr+
