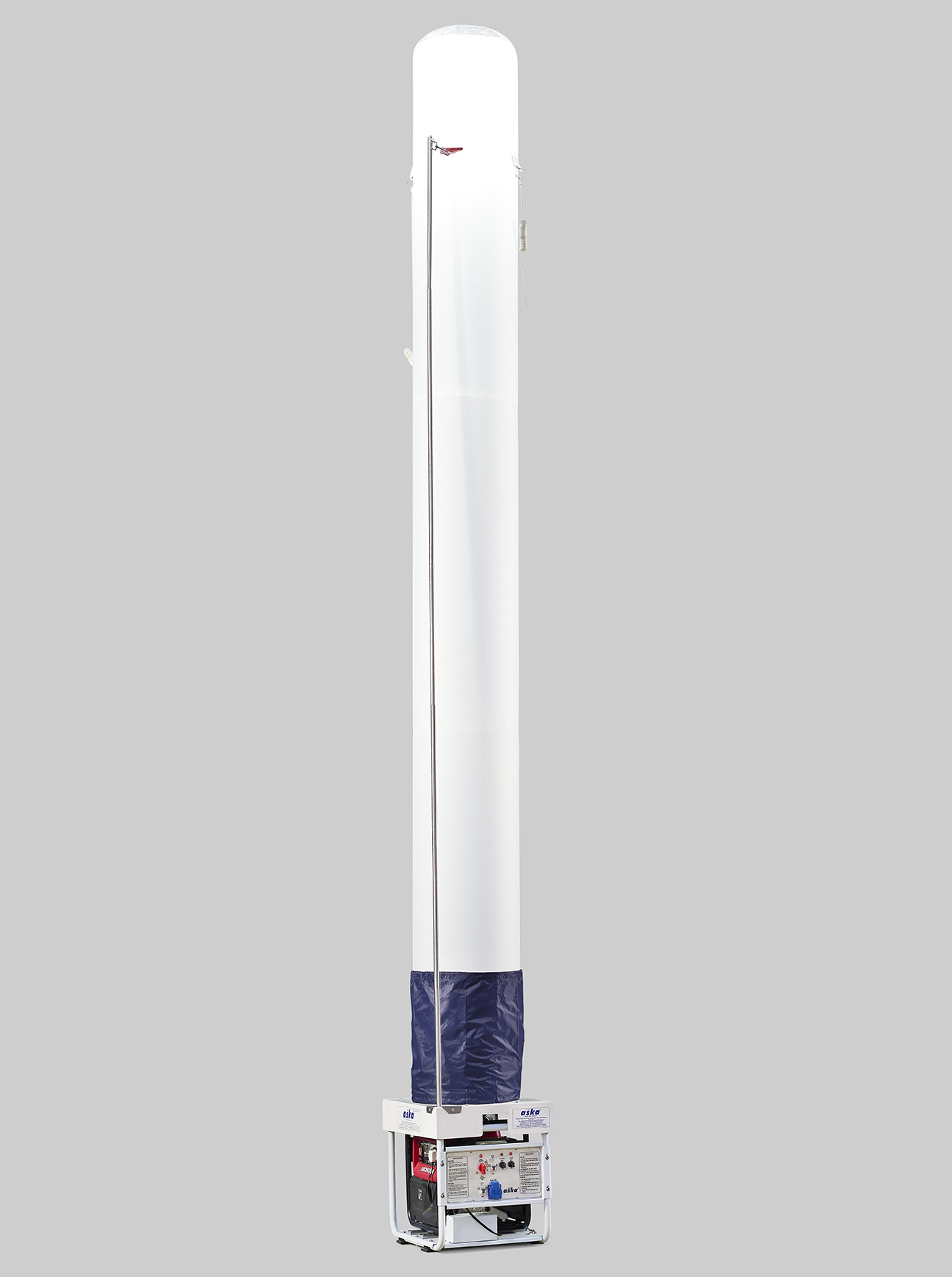

Portable inflatable Lighting System

MODEL-AIT4500 GENERAL

lamps

lamps

400W metal halide lamp

light-coverage

Light Coverage

Up to 10,000 sq. meters with in 3 minutes

fuel-indicator

Engine

Briggs & Stratton / Honda

speed-stability

Total Lumens Output

42,000 Lumens

Description

The Portable Inflatable Emergency Lighting System is designed for ease of transportation and setup, featuring a built-in 1200VA/750 VA engine and generator (Genset) as a portable power source. It includes two blowers and a 400W metal halide lamp.

The blower inflates cloth at a height of 4.5 meters from the ground level on switching on the Genset. It can illuminate an area of up to 10,000 square meters.

  • Applications for illuminating an area during and after fire fighting operation
  • For rescue operations during dark hours
  • For disaster management during dark hours

Features
  • Easy to operate & handle
  • Excellent illumination with high-power Metal Halide lamps
  • The most fuel-efficient fuel engines
  • Illumination up to 10,000 sq. meters within 3 Minutes

Closed system [LxBxH] mm (Nominal) approx. 545 x 450 x 500 mm
Height 4.5 Metres
Minimum weight of the system (without fuel and storage box) 45 Kg
Genset details 4-Stroke
Generator rated output (VA) 230V/50Hz 1200VA/750 VA
Fuel tank capacity (L) 8.0 L / 3.6 L
Continuous operating hours 10+ Hours/5.5 Hours
Starting system Recoil
Light source 400W Metal halide lamp
Lamp light output (brightness) 42,000 Lumens
Outside wind speed at which the balloon shall remain erected 45 km/hr and 70 km /hr) with stabilizing /supporting rods
Time for tower extension/ inflation 60 Sec
Time to pack "maximum deflation time including repacking time 4 Minutes
No. of air blowers of suitable rating Two
Balloon heights in inflated condition from the base plate 4.5 Metres
Light up area (Approx.) 10000 Sq. meters
