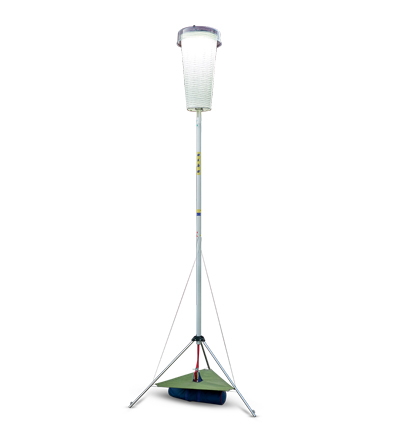

Modular Lighting System with Remote Control
Butterfly Lite
A uniquely designed, portable lighting system with remote control, offering brilliant illumination for temporary and emergency situations.
lamps
150 W LED X 4
Light Coverage
-
Engine
Power Source Genset EP1000 (750VA)
Total Lumens Output
67000
Download Brouchure
Enquiry NowDescription
Aska Modular Lighting system with remote control is an unique asthetically designed modular,detachable & portable lighting system with remote control for temporary & emergency lighting solutions with minimum 67,000 lumens upto 4 meter height
Features
- 50,000 hours LED Life
- Two channel wireless remote regulator within 30 meter range operation
- Total height upto 4 meter
- Low weight less than15 KG
- Carrying case for complete unit
| Power: | 600 W |
|---|---|
| Number and power of the LEDs | 4x150W |
| Nominal lighting power (in Lumens output) | Minimum 67,000 lm |
| LED life | 50,000 hr |
| Lux level at 1250 sqm ( approx) | 12 Lux average |
| Lux level at 7850 sqm (approx.) | 1.5 Lux average |
| Lux level at 11310 sqm (approx.) | 1.0 Lux average |
| Diffuser tube height: | Minimum 79 cm |
| Lighting with 2-channel wireless remote switch with the following steps: | 0 / 300 / 600W or 600 / 300 / 0W |
| No. of remotes | 2 pcs with minimum 30 meter range operation |
| Total height from ground level including tripod and modular light (diffuser tube) ± 5% | 4 meters |
| Total height of modular light with open system: | 100 cm ±5 |
| Height with closed system modular light: | 23 cm ±5 |
| Total weight of complete modular light including diffuser tube (excluding accessories like Gen Set (EP 1000 750VA), 1 empty water bag with belt, packing box, 3 anchor grouting hooks, 3 ropes. | Less than 15 kg |
| Total weight of complete light module with protection cap ( excluding tripod - light supporting stand) | Less than 8.5 kgs |
| Weight of light supporting tripod stand / base | Should be less than 6.5 kgs |
