Tripod Lighting System
Tripod Lighting System

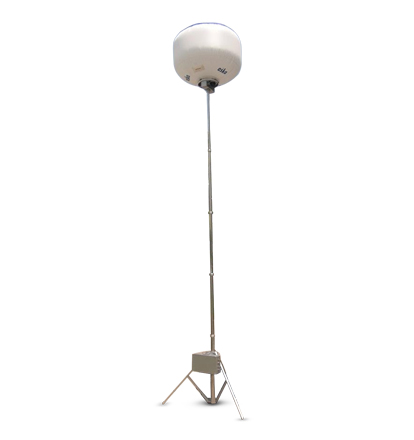

Aska Tripod Lighting system consist of spherical balloon with telescopic mast and tripod stand, inbuilt blowers and 400W LED lamp.
lamps
400 W LED
Light Coverage
10000
Engine
4-stroke , OHV , single cylinder , 79.7 CC
Total Lumens Output
51000
Download Brouchure
Enquiry NowDescription
It inflates the cloth at a height of 4 meters from ground level,easily switchable on the 400 W lamp which provides 360 degree glare free pure white illumination upto 10,000 sq. meterswithin 3 minutes.
Features
- Weight is 50 Kg
- Fuel capacity 3.6 liter for continous operation upto 5.3 hours
- Lumens output minimum 51,000
- withstand windspeed 45 km/hr
- IP- X5 rating
| Height | 4 mtrs min |
|---|---|
| Weight of System ( Without FueL and Storage Box) | 50Kg max |
| Genset DetaiLs | 4-stroke , OHV , single cylinder , 79.7 CC |
| Generator ModeL | EP1000 with CPCB Compliance |
| Generator Rated Output (VA) 230V / 50Hz | 750 VA |
| FueL tank capacity (L) | 3.6 L |
| Continuous Operating Hours | 5.3 hours |
| Starting System | Recoil |
| Light Source | 400W White LED Lamp |
| Lamp Light Output (Brightness) | min 51,000 Lumen |
| WITHSTAND Wind Speed (km / hr) | 45 km / hr with wind support and sand bag |
| Ingress protection rating of the InfLated tower onLy as per IS:10322 Part 1 / 82 | IPX5 |
| Time For Tower Extension / Inflation | 2 minutes for tower extentsion / balloon inflatation 30 Sec. |
| No of supporting legs Material of supporting legs | 3 Nos. Stainless Steel |
| No. of air bLowers of suitabLe rating (Nos.) | ONE |
| Material of Tower Collapsible mast / Vertical mast No of Vertical mast section | Aluminum |
| Light up area (Approx.) | 10000 sqm |
