Splendid

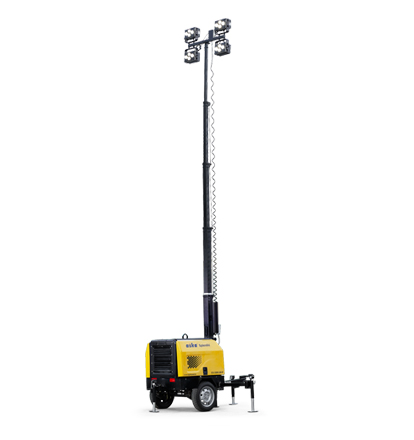

Lighting system has a Kohler 1-cylinder air cooled engine with its 4 LED lamps of 350 Watt each.
lamps
350W LED x 4 NOS
Light Coverage
5800 Sq m
Engine
KOHLER “Single Cylinder”
Total Lumens Output
210000 Lumens
Description
Aska Mobile light towers comprises of three main components i.e Power Source (Engine with alternator or Battery bank ), Mast with LED lights and controller having unmatched advanced technological features including ease of portability providing most economical and qualitative advantages to the users. In addition, It has high lumens covering wide viewing range including longer depth & more coverage area with sufficient intensity of light. Further, It takes full care of the safety of the complete Ligting tower including components as well as workforce deployed thereby. It is next generation exemplary product with remarkable life cycle, sustainabilty and green energy meeting prescribed emission norms by Ministry of Environment
Features
- 50000 + hours LED rated average life
- Easy to operate & handle
- Excellent illumination with high-power LED lamps
- The most fuel-efficient diesel engines
- Designed to withstand the harshest conditions
- Hard Hood Canopy and powder coating paint to prevent corrosion
- Easy to tow anywhere with a 13" wheel
- Equipped with Deep Sea, the World’s No.1 Engine Controller designed for light towers
Type of Lamp Fittings | Rectangular | |
---|---|---|
Floodlights / Lamp | LED | |
Wattage | 4 No's x 350 W | |
Total Lumens Output | 210000 Lumens | |
Lumens per Watt | 150 Lm / W | |
Light coverage in Square meters | 5800 Sq m | |
Ingress Protection (IP) Rating | IP67 |
Engine Make | Kohler - Lombardini | |
---|---|---|
Engine Model | KD 441 | |
Engine Horsepower | 8.2 | |
Engine Power (KW) | 6.1 | |
Engine Speed (rpm) | 3000 | |
No. of Cylinders | 1 | |
Emission Norms | CPCB-2 |
Fuel Tank Type | Bunded Tank |
---|---|
Fuel Tank Capacity | 80 Litres |
Fuel consumption ( Approx.) | 1.0 Litres / h |
Alternator Make | NSM Italy, Type: Single phase / 2 pole / brushless / Mc Alte / LINZ - Alumen | |
---|---|---|
Rated Output | 5 kVA | |
Alternator Degree of Protection | IP23 | |
Rating Voltage (Volt) | 230 Volt | |
Auxiliary power | 10 Amp. Maximum |
Type | Manual Operation winch and each operation interlocked |
---|---|
Maximum height (meters) | 7.8 |
Number of mast section | 5 |
Mast Rotation | 359° with locking system & manual operation |
Mast Erection time | < 2 minutes |
Wind Speed Stability | 110 Km / hr |
L x W x H (Minimum) in mm | 2000 x 1610 x 2410 |
---|---|
L x W x H (Maximum) in mm | 2750 x 2970 x 7800 |
Dimensions for transport in mm | 2010 x 1620 x 2420 |
Weight in kg | 665 Kg (Approx.) Dry |
