Model BB 01

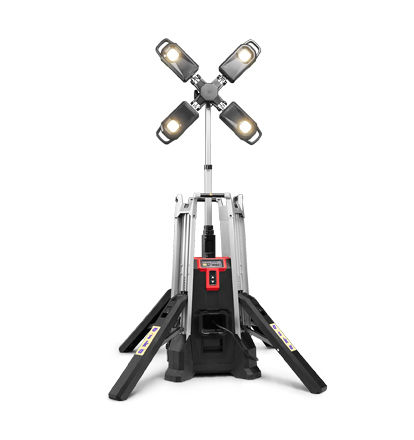

The LED light tower by ASKA helps meet both temporary and emergency requirements. It’s a battery-operated unit that features a motorized mast.
LED Wattage
250 W
Lighting Heads
4 X 250 w
Frequency
50 - 60 Hz
Mast Height
3 m
Description
Aska's Portable LED Light tower with battery bank has light weight , high definition light output upto 27,000 lumens in AC and 20,000 lumens in DC mode,with manoeuvrability of light heads in multiple orientations in 360 degree, allowing the user to focus light to desired area & direction.
Features
- Low weight of 48 kg with the two big all-terrain wheels
- Easily towable across wet and uneven job site terrains with minimum effort
- Capable to be set up in less than 10 sec.
- The mast is extendable up to 3.10 meters and can withstand up to 55 km/h of wind
- LED Lights are built with durable, high-impact polycarbonate lenses with impact sustainability.
- Duly protected battery box
- IP55 rating
- ONE-KEY™ tool tracking & security
- The built-in charger for the battery in AC mode
LED wattage | 250W |
---|---|
Number of lighting heads | 4, Adjustable LED light heads |
CCT | 4000K |
CRI | ≥80 |
Input voltage primary | 220-240V AC |
Frequency | 50-60 Hz |
AC- Mode | IP55 |
---|---|
DC- Mode | IP55 |
High level | 18000 lm |
---|---|
Medium level | 8000 lm |
Low level | 3000 lm |
Lux level at 20 m (180°/ 360°) | 27.00 / 8.00 Lux |
Lux level at 45 mtrs (180°/ 360°) | 5.00 / 1.0 Lux |
Lighting time with AC mode | Endless |
High level | 2 Hours |
---|---|
Medium level | 5 Hours |
Low level | 8 Hours |
Mast height (total tower height) | More than 3.0 metres |
---|---|
Tower telescopic – set up time | Approx. 30 seconds (both AC and DC modes) |
Overall size in close condition (L x W X H in mm) | 645 x 585 x 1110 in mm +/- 5% |
Gross weight with one battery bank (6.0Ah) | 54 kgs |
Charger-rated power input & primary AC supply | 480 W & 220 V-240 V, 50 / 60 Hz |
Quick charge current for battery charging | 4.5 Amps |
On DC supply | 180 Sq. metres @ average 6.0 lm |
---|---|
Withstand wind storms | 55 Km / hr |
Battery details | Li-Ion battery |
Battery charging time | 90 mins minimum |
Weight of extra battery | 5 kg max |
Battery capacity | 6.0 AH |
