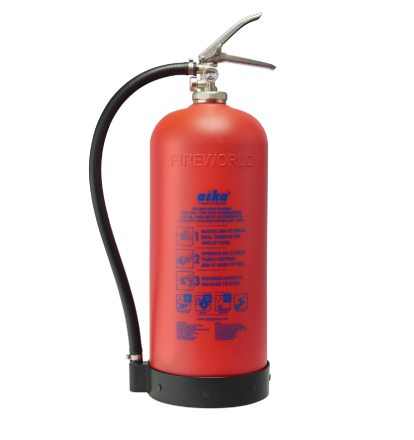

Introducing the ASKA Composite Powder Type Fire Extinguisher - Your Ultimate Fire Safety Solution!

lamps

Type

Stored Pressure

light-coverage

Nozzle

Nylon

fuel-indicator

Operating Pressure

12 Bar

speed-stability

Expellant Medium

N2 Based

Description

ASKA Composite Powder Type Fire Extinguisher contain special powder (ABC Powder) in its inner chamber with Nitrogen based expellant medium suitable to rapidly extinguish all types of Class A , Class B , Class C and Electrical fires besides being non conductive.

Features
  • ISI Marked and also complied with EN3 Standard
  • Special powder is a combination of Ammonium Phosphate & Ammonium Sulphate
  • Non Condutive
  • Carbon Neutral
  • Light Weight
  • 100 % recyclable
  • 10 year corrosion guarantee
  • 20 year shelf life
  • Higher Strength with winding
  • Maintenance Free & Corrosion Free
  • Class A, Class B , Class C & Live Electric Power Up To 1000v Non Conductive

Particulars Vessel Capacity
2Kg 6kg 9Kg
Conformity to EN3 Standard EN3-7 Standard
Conformity to BIS Standard BIS 15683: 2018 (Clause Number 9.2.8)
Type Stored Pressure
Vessel MOC HDPE with Aramid Winding (Kevlar). Non Corrosive Type.
Nozzle: Nylon
Operating Head Material Brass BS2872-CZ122 Nickel Plated
Hose: Not Applicable
13A / 55B / Class C & Non Conductive 43A / 233B Class C & Non Conductive 55A / 233B Class C & Non Conductive
Operating Pressure 12 bar
Discharge Duration ( Approx . )
18 sec 20 sec 22 sec
Lancing Distance
3m 5m + 7m +
Expellant Medium N2 Based
Content Powder
Weight ( Filled ) with Bracket & Belt
3.30 +/- 0.150 Kgg 8.50 +/- 0.150 Kg 11.80 +/- 0.150 Kg
Pressure Gauge 2 Nos for land applications / 1 No for onboard ships with 1 no. schrader valve
Shelf Life 20 Years
Corrosion Guarantee of Vessels 10 Years
Operating Temperature Range -30 ° C to + 60 ° C
Test Pressures 1.5 times the operating pressure
Burst Pressure 2.5 times the operating pressure
